Minimum Order Quantity: 1 Piece
| Feature | Detail |
|---|---|
| Type | Shear Beam Load Cell |
| Capacity Range | 100 kg to 5 Ton (custom models available) |
| Material | Alloy Steel / Stainless Steel |
| Output Sensitivity | 2.0 ± 0.002 mV/V |
| Excitation Voltage | 10V DC (Max 15V) |
| Accuracy | ±0.03% of Full Scale (FS) |
| Protection Class | IP67 / IP68 (based on model) |
| Cable Length | 3 to 5 meters |
| Mounting Type | Side or Bottom Mount |
| Applications | Platform Scales, Tank Weighing, Conveyor Systems |

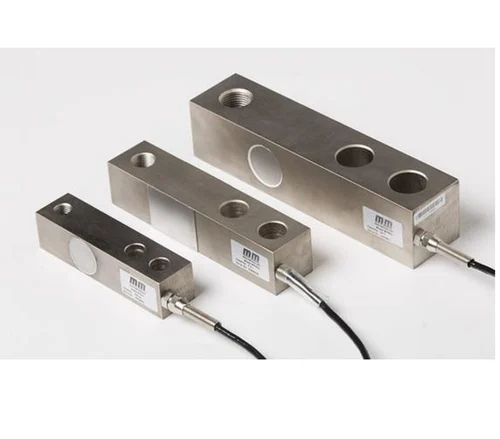

The Shear Beam Load Cell by Maxtron is engineered for mid-range industrial weighing applications like platform scales, tank weighing, and conveyor weighing systems. With a compact design and excellent accuracy, it offers easy installation and high resistance to side loads and environmental conditions. Available in alloy steel or stainless steel, it’s ideal for rugged use where reliability is critical.
